Engine

• 13 HP Honda GX390 or 20 HP Honda GX630
• Electric start with 18 amps/200Watts
• Gasoline, air cooled, 4 stroke, one cylinder, OHC
• 3 years Warranty by Honda

Saw head

• Maximum Diameter of log, 30 inches
• Maximum width of board, 21 inches
• 7/8 inch last board cut capability
• Blade of 157’ ½ x 1 1/4 APEX RF (1 blade included)
• Electric saw head positioning, with auto-lock 4000 lb high quality electric winch
• Simple cam lock blade tensioning for fast and easy adjustment​
• Single, one piece solid front panel, for easy access blade maintenance
• High grade double bearing blade-guide, zinc design and adapted for heavy usage with a 18 inch wheel
• MXV-890 Drive Belt
• B56 Flywheel Belt

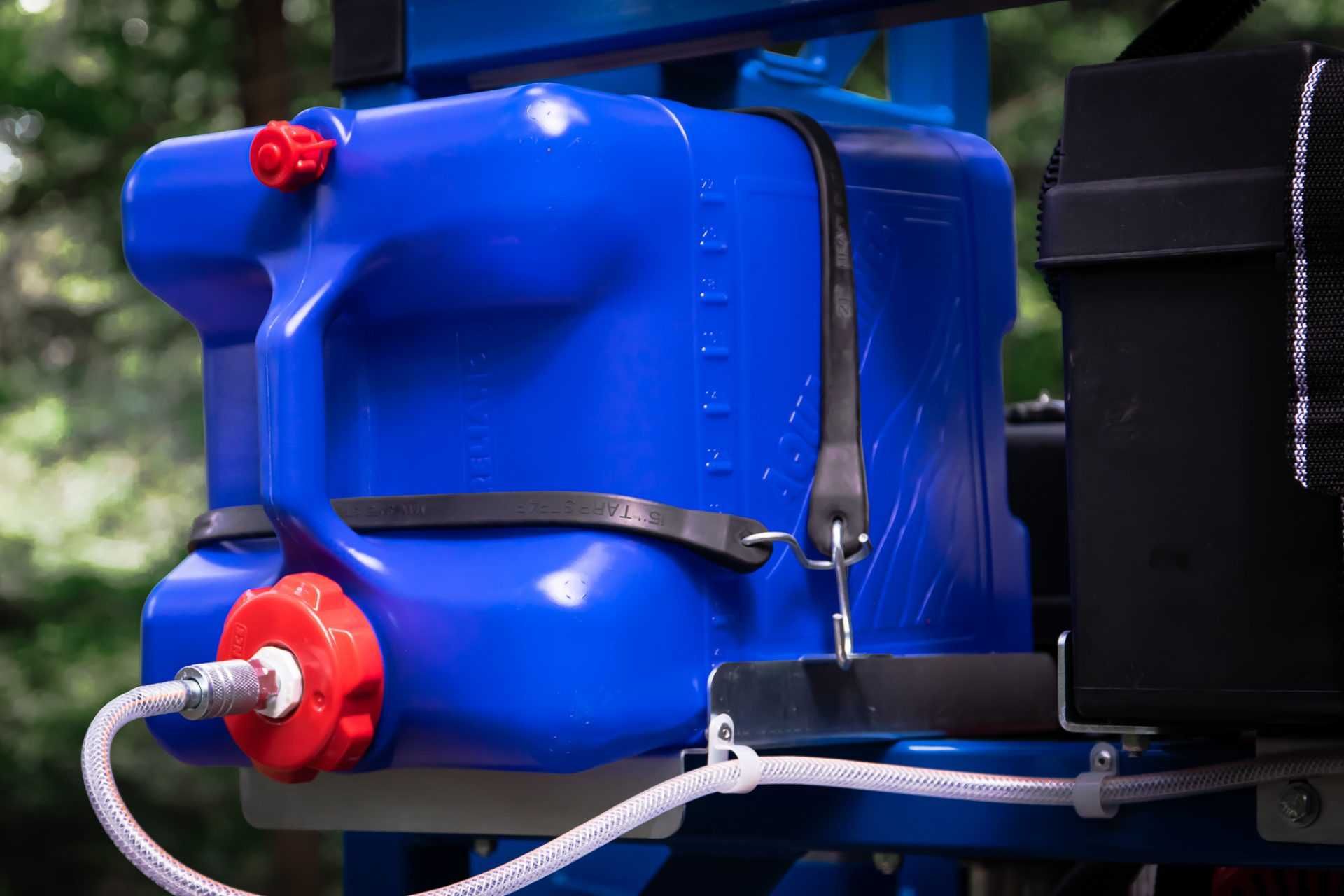

• Large 7 gallons (26 liters) removable lubrification tank
• Super-Duty head frame construction, completely made of 2”x 2’’ solid welds
• Large colored graduated ruler, details from ¾ up to 4 Inches,
• Hydraulic blade tensionner available in option – contact your dealer for more information
•
• Auto-blade lube system automatically turns on and off fluid flow during operation
• Automatic blade-brake system , maximize speed and the lifespan of your blades
• Automatic engine throttle and saw blade engagement.

Base

• Up to 21 feet maximum board length, onto a 24 feet bed
• Solid steel tubing frame completely welded with cross members (no joints, no bolts)
• 6 adjustable jacks (2×4 frames)
• 4 adjustable jacks and 5 stabilizing legs for maximum stability (2×6 frames)
• 2 log clamps, simple one hand cam-lock design​​
• 2 integrated levelers with casters, allow to compensate the taper of a log and rotate it without effort
