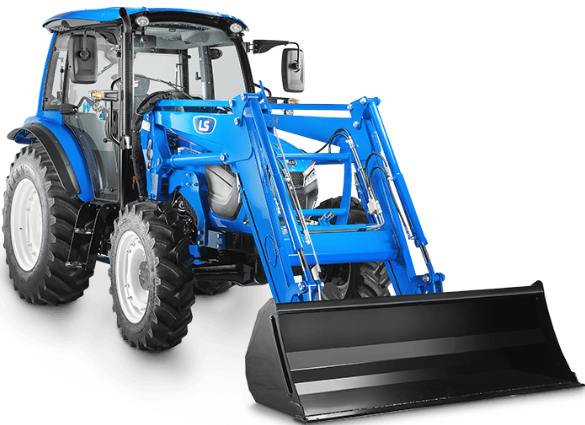

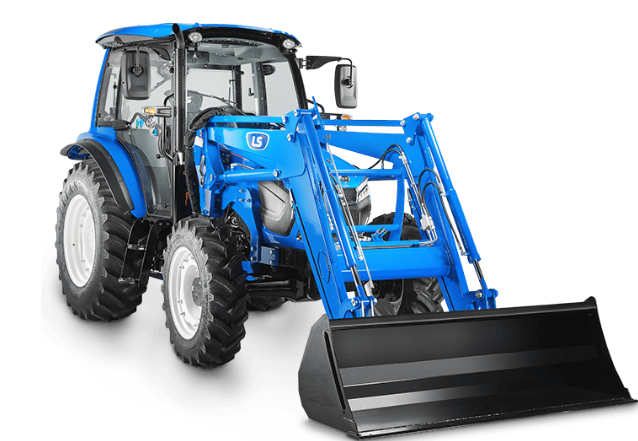

NEW MT4 Series


UPGRADED

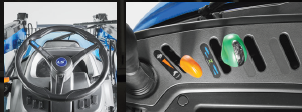

Handle Design, Knob design enhancement,

Switch (PTO, Combi) enhancement, Enhanced grip and ease of operation.

TF-LCD INSTRUMENT PANEL

Providing various information (excluding 25hp) such as regen time, oil change interval, etc.


WRAPAROUND STYLE

-exterior and interior for improved visibility

-Optimized control layout for user convenience

RELOCATED MUFFLER

-to improve visibility


EXPANDED FRONT GLASS

-to improve visibility

IMPROVED HIGH BACK SEAT

-seat with wider and improved cushion comfort


-Sharp LS logo imprint on seat


-Standard improved armrests



NEW MULTI-USE SIDE CONSOLE


INSTALLED INDOOR HANDRAIL



STANDARD 3RD FUNCTION BUTTON ON JOYSTICK

STANDARD FOLDABLE ROPS

Allows storage in low clearance buildings or sheds. *On open station models only

YOUR CHOICE OF TIRES

Choose Ag, Industrial, Big Ag, R14

*Subject to dealer inventory.

*Some tire options may have extra costs associated, see dealer for details.

3-POINT HITCH

Category 2 with a hitch lift capacity of 3,483lbs. allows usage of a wide variety of implements.

ERGONOMICALLY DESIGNED 3-POINT HITCH CONTROLS

Easily accessible for maximum comfort and convenience with hydraulic position control.

STANDARD DRAW BAR

Increases the usefulness of the tractor without the additional optional cost.

LARGE FUEL TANK

24.3 gallon capacity provides long operation times between fill ups.

STANDARD RUBBER MAT

Reduces noise, vibration and prevents slipping.

4 CYLINDER LS TIER 4 ENGINE

Fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Standard preheat starting aid improves cold weather starting. Includes cruise control.

EASY OPEN ONE-PIECE STEEL HOODProvides accessibility for easy maintenance.

MODERN ERGONOMIC DESIGN

This compact is ergonomically designed .

  • MT463 Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 63

    PTO HP: 54.1

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Synchro shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of ROPS (in.): 113.9

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5313

  • MT463PS Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 63

    PTO HP: 54.1

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Electro Power Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of ROPS (in.): 113.9

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,313

  • MT473 Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 73

    PTO HP: 62.9

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Synchro Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of ROPS (in.): 113.9

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,423

  • MT473PS Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 73

    PTO HP: 62.9

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Electro Power Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of ROPS (in.): 113.9

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,423

  • Loader Specs

    Model: LL5001

    HEIGHT POSITION

    Maximum Lift Height, in: 132.9

    Bucket, in: 78

    Lift Capacity (At Pivot Pin, Max. Height) (Lbs): 3,426

    Maximum Dump Angle, deg: 44.4

    Bucket Capacity (gal.): 126.8

    Bucket Rollback Force (At Ground Level( (Lbs): 3,524

    Digging Depth (in.): 6

    Loader Weight (W/O Bucket) (Lbs): 1,190

    POWER POSITION

    Maximum Lift Height, in: 116.8

    Bucket, in: 78

    Lift Capacity (At Pivot Pin, Max. Height) (Lbs): 3,488

    Maximum Dump Angle, deg: 59.7

    Bucket Capacity (gal.): 126.8

    Bucket Rollback Force (At Ground Level( (Lbs): 3,529

    Digging Depth (in.): 5.1

    Loader Weight (W/O Bucket) (Lbs): 1,190

  • MT463C Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 63

    PTO HP: 54.1

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Synchro shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of Cab (in.): 105.4

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,776

  • MT463CPS Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 63

    PTO HP: 54.1

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Power Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of Cab (in.): 105.4

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,776

  • MT473C Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 73

    PTO HP: 62.9

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Synchro Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of Cab (in.): 105.4

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,886

  • MT473CPS Specs

    ENGINE

    Type: Vertical Water-Cooled 4Cycle Diesel Engine

    Model: L4C25-T

    Engine HP (Gross): 73

    PTO HP: 62.9

    Rated Speed (RPM): 2,500

    Displacement (cu. in.): 152.85

    Fuel Tank Capacity (gal): 24.3

    DRIVE TRAIN

    Transmission: Power Shuttle

    No. of Speeds: F16 x R16

    Brakes: Wet, Multi Disc

    Steering: Hydrostatic Power Steering

    PTO

    Type: Independent

    Rear (rpm): Standard (540) (540E)

    HYDRAULIC SYSTEM

    Control System: Position / Draft

    Implement pump (gpm): 14.5

    Steering pump (gpm): 6.6

    Total flow (gpm): 21.1

    Category, 3 pt hitch: CAT 2

    Hitch Lift capacity (lb): 3,483

    Remote Valves: 2 Paris (Front, 2 Pairs (Rear)

    DIMENSIONS

    Overall length, Frame to link, (in.): 140

    Wheelbase (in.): 83.1

    Overall width with tires, in. (in.): 72.6

    Height to top of Cab (in.): 105.4

    TIRE SIZE

    Standard Ag Front / Rear: 9.5 - 24 / 16.9 - 28

    IND Front / Rear: 10.5/80x18 10PR / 19.5Lx24 8PR

    Large Ag Front / Rear: 11.2-24 / 16.9-30

    R14 Front / Rear: 320/85R20 119D / 420/75R4 142D

    WEIGHT

    Total weight without ballast (lbs.): 5,886
