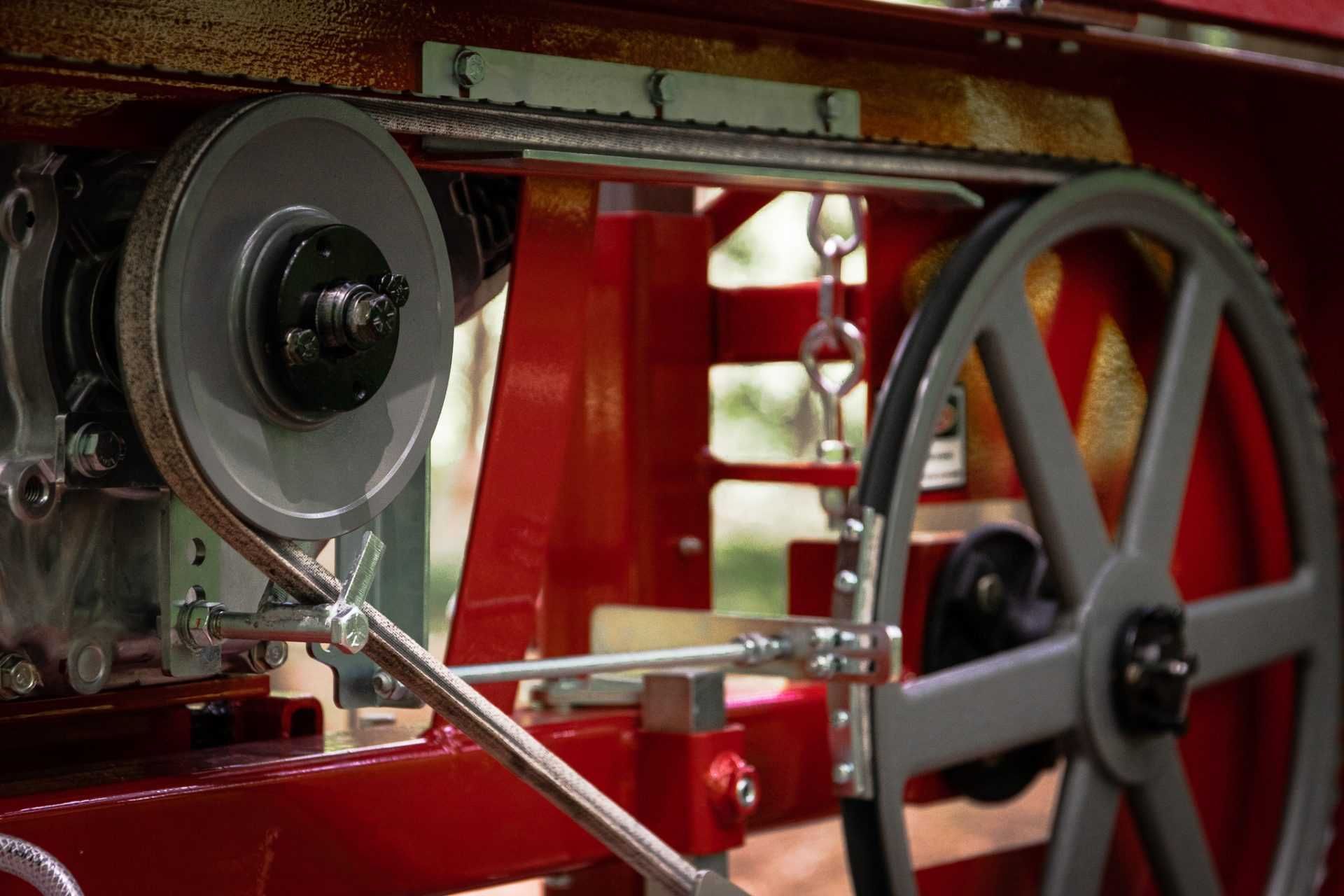

One Motion, Four Operations
Increase Engine Speed
Release Blade Brake
Initiate Blade Rotation
Activate Blade Lubrication

-
Specifications
Engine
- 13 HP Honda GX390 or 20 HP Honda GX630
- Electric start with 18 amps/200Watts
- Gasoline, air cooled, 4 stroke, two cylinders, OHC
- 3 years Warranty by Honda
Saw head
- Maximum diameter of log 30 inches
- Maximum width of planks 21 inches
- 7/8 inch last board cut capability
- Blade of 157’ ½ x 1 1/4 APEX RF (1 blade included)
- Simple cam lock blade tensioning for fast and easy adjustment
- Single, One piece solid front panel, for easy access blade maintenance
- Electric Saw Head positioning and auto-lock electric winch of 4000 lbs mounted on a drum shaft with double cables of aeronautical quality​
- High grade double bearing blade-guide, Zinc design and adapted for heavy usage with a 18 inch wheel
- MXV-890 Drive Belt
- B56 Flywheel Belt
- Large 7 gallons (26 liters) removable lubrification tank
- Heavy-Duty frame construction, completely made of 2’’X2’’ solid welds
- Large colored graduated ruler, details from ¾ up to 4 Inches,
- Hydraulic blade tensionner available in option – contact your dealer for more information
- Auto-blade lube system automatically turns on and off fluid flow during operation
- Automatic Blade-Brake system , maximize speed and the lifespan of your blades
- Automatic engine throttle and saw Blade engagement.
Base
- 21 feet maximum board length, onto a 24 foot bed
- Extra solid steel tubing frame 2X6 3/16, completely welded with crosspieces, no joints
- 8 conveyor rollers of 12 inches monted on bearing coated with zinc plating
- 4 log clamp, simple one hand cam-lock design
- 4 integrated levelers with casters, allow to compensate the taper of a log and rotate it without effort
- 4 adjustable jacks and 5 stabilizing legs for maximum stability
-
