Backhoe

LB1106

  • Digging Depth (in): 76.3
  • Reach From centerline of swing Pivot (in): 113.1
  • Loading Height (in): 63.9
  • Swing Arc (deg.): 180
  • Transport Height (in): 77.2
  • Bucket Rotation (deg.): 180
  • Stabilizer Spread (Down Position) (in): 68.7
  • Stabilizer Spread (Up Position) (in): 46.4
  • Bucket Digging force (lbs): 2,817

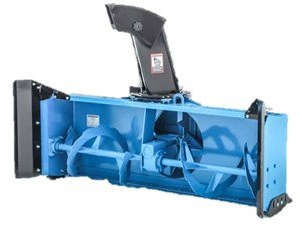

Snowblower

LW3168 A

  • Overall width (with side extensions), inches: 68
  • Cutting width, inches: 68
  • Cutting height, inches: 23
  • Impeller drive: Gear box
  • Auger drive: Worm gear
  • Auger diameter, inches: 13 3/4
  • Impeller diameter, inches: 17 5/8
  • Number of blades on impeller: 4
  • Chute rotation: hydraulic
  • Adjustable heavy skid shoes: yes, 3 positions, 0”, 1/2”, 1”
  • Auger shear bolt protection: Yes
  • Impeller shear bolt protection: Yes
  • Approx. shipping weight, lbs: 500
