Backhoe
LB1107
- Digging Depth (in.): 77.8
- Reach from Centerline of Swing Pivot (in.): 144.9
- Loading Height (in.): 59.6
- Swing Arc (deg.): 140
- Transport Height (in.): 74.7
- Bucket Rotating (deg.): 169.4
- Stabilizer Spread (Down Position) (in.): 78.6
- Stabilizer Spread (Up Position) (in.): 53.2
- Bucket Digging Force (lbs.): 2,097
- Shipping Weight (lbs.): 873
Mid-Mower
LM1160
- Cutting Width (in.): 60
- Overall Width (in.): 75.6
- Cutting Height Range (in.): 4
- Deck Shell Thickness (in.): 0.126
- Spindle Speed at 3000 RPM: 2,786
- Blade Tip Speed (ft./min.): 14.932
- Number of Blades: 3
- Blade Length (in.): 20.5
- Blade Width (in.): 2.48
- Blade Thickness (in.): 0.236
- Shipping Weight of Base 60” Deck (lbs.): 284.4
Pro Grass Catcher
MGC1722 PRO
- Recommended tractor PTO (HP) : 18-30HP
- Grass Catcher Type: Aluminum Box Type
- Drive Type: PTO
- Working Width (in.) Mower Size: 54/60
- Capacity (Cu. Ft.): 22
- Capacity (Bushel) :17.6
- Approx. Install Weight (lb): 326
- Shipping Measurement: 72 x 46 x 53
- Impeller (Heavy Duty): 4-Blade Steel
- Housing (Heavy Duty): Cast Aluminum73

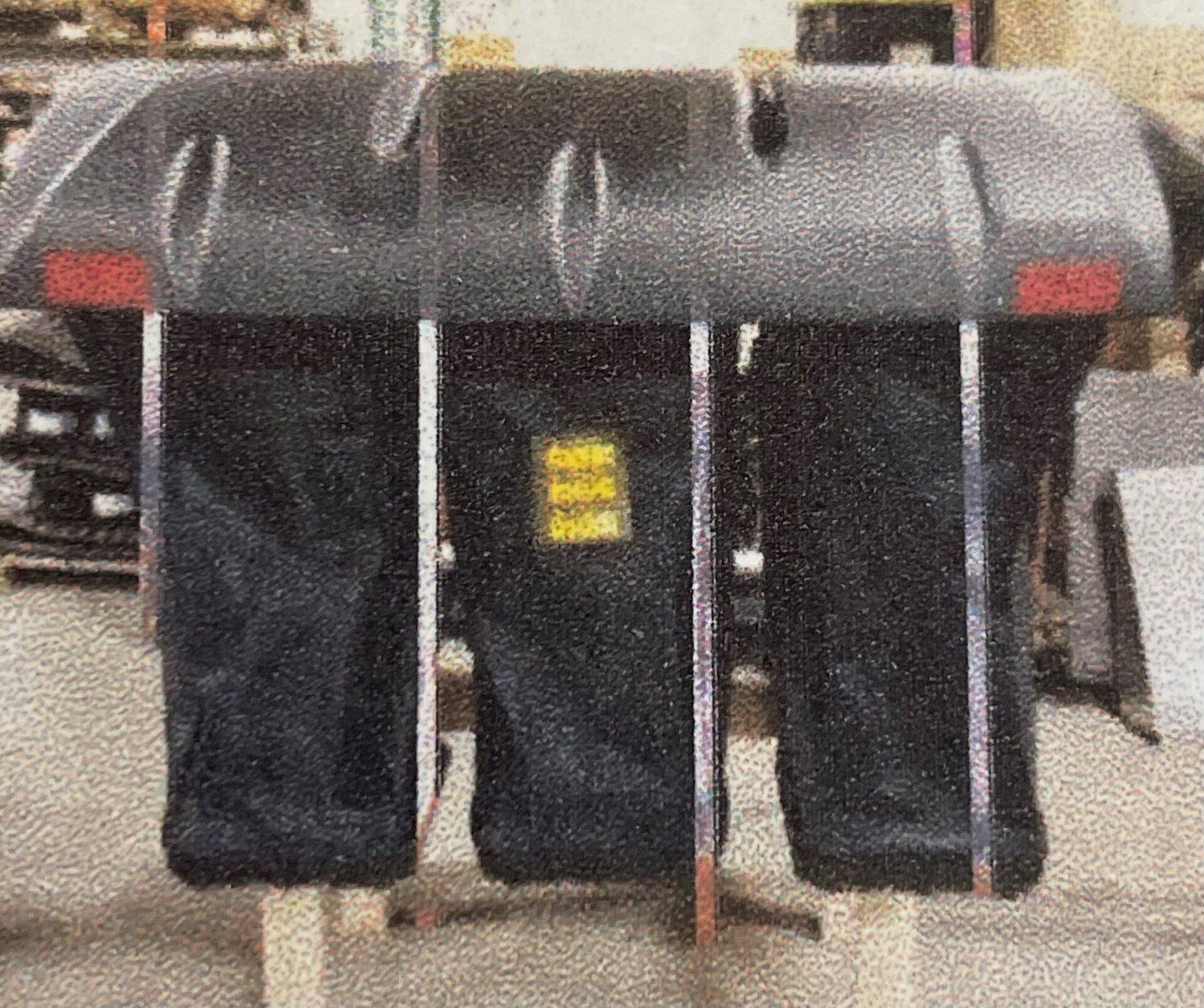

Grass Catcher
MGC1715
- Recommended tractor PTO (HP) : 18-30HP
- Grass Catcher Type: 3 Bag Type
- Drive Type: PTO
- Working Width (in.) Mower Size: 54/60
- Capacity (Cu. Ft.):15
- Capacity (Bushel) :12
- Approx. Install Weight (lb): 276
- Shipping Measurement: 72 x 46 x 35
- Impeller (Heavy Duty) 4-Blade Steel
- Housing (Heavy Duty) : Cast Aluminum

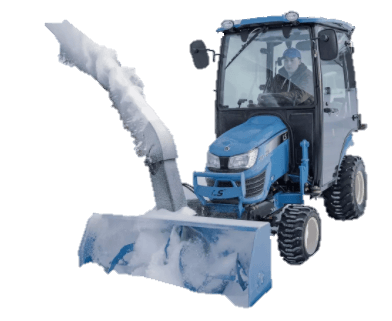

Snowblower
LW3150
- Overall width (in): 50
- Cutting width (in): 49 3/4
- Cutting height (in): 20
- Impeller drive: Chain #40
- Auger drive: Worm gear
- Auger diameter (in): 12 3/4
- Impeller diameter (in): 15 3/4
- Number of blades on impeller: 3
- Chute rotation: Manual (Hydraulic Optional)
- Adjustable heavy skid shoes: yes
- Auger shear bolt protection, yes
- Impeller shear bolt protection: yes
- Approx. shipping weight (lbs): 350
