Engine

• 14 HP Vanguard engine (by Briggs & Stratton)
• 408cc, gasoline, air cooled, 4 stroke, one cylinder
• Electric starter
• Cyclonic Air Filtration
• 3-year warranty by the manufacturer

Saw head

• Maximum diameter of log 30 inches
• Maximum board width 21 inches
• 7/8 inch last board cut capability
• Simple cam lock blade tensioning for fast and easy adjustment

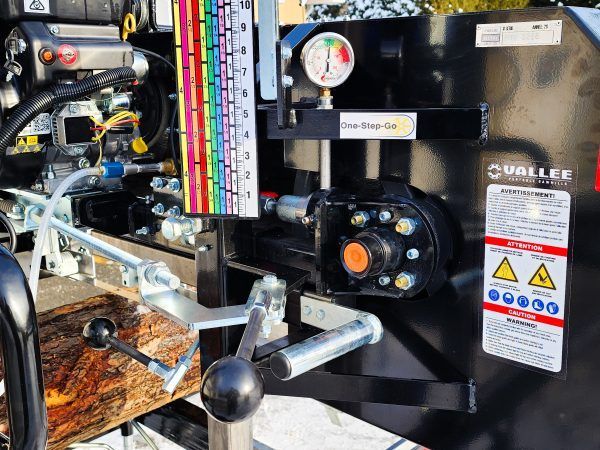

• A pressure gauge for precise blade tension adjustment
• Single, one piece solid front panel, for easy access blade maintenance
• Electric saw head positioning, with auto-lock 4000 lb high quality electric winch
• High grade double bearing blade-guide, zinc design and adapted for heavy usage with a 18 inch wheel
• Large 7 gallons (26 liters) removable lubrification tank
• High-Duty frame construction, completely made of 2’’X2’’ solid welds
• Large colored lumber scale, details from ¾ up to 4 Inches,
• Hydraulic blade tensionner available in option – contact your dealer for more information
• Auto-blade lube system automatically turns on and off fluid flow during operation
• Automatic blade-brake system , maximize speed and the lifespan of your blades
• Automatic engine throttle and saw blade engagement.
• Sweden-made APEX RF blade of 157 ½” x 1 ¼” (1 blade included)
• MXV-890 Drive Belt
• B56 Flywheel Belt

Base

• 17 feet maximum board length, onto a 19 ½ feet bed
• Solid steel Tubing frame 2” x 4” x ⅛”, completely welded with crosspieces, no joints
• 2 log clamps, simple one hand cam-lock design
• 2 levelers equipped with casters for easy log rotation
• 3 grooved stopper posts
• A storage platform for tools
• Optional frame rollers to facilitate the movement of logs and boards.

Towing equipment – off road only

• Single axle trailer kit
• All-terrain wheels and tires (optional high-speed wheels available)
• 2000 lb. suspension and axle
• 2-inch drawbar and 3500-lb. safety chain
