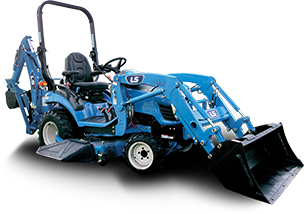

FRONT END LOADER – LL1100
Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.): 72.0
Clearance with Attachment Dump (in.): 53
Reach at Maximum Height (in.): 21.5
Maximum Dump Angle (deg.): 46
Maximum Rollback Angle (deg.): 28
Digging Depth (in.): 4.7
Overall Height in Carry Position (in.): 41.5
Lift Capacity (@ Pivot Pin) (lbs.): 1,005
Breakout Force(@ Pivot pin), lbs.: 2,083
Approx. Weight (Loader w/o Bucket) (lbs.):
320
FRONT END LOADER – LL1101
Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.): 72.0
Clearance with Attachment Dump (in.): 48.8
Reach at Maximum Height (in.): 25.2
Maximum Dump Angle (deg.): 46
Maximum Rollback Angle (deg.): 28
Digging Depth (in.): 4.8
Overall Height in Carry Position (in.): 41.5
Lift Capacity (@ Pivot Pin) (lbs.): 966
Breakout Force(@ Pivot pin), lbs.: 2,039
Approx. Weight (Loader w/o Bucket) (lbs.): 364
FRONT END LOADER – LL1100
Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.): 72.0
Clearance with Attachment Dump (in.): 53
Reach at Maximum Height (in.): 21.5
Maximum Dump Angle (deg.): 46
Maximum Rollback Angle (deg.): 28
Digging Depth (in.): 4.7
Overall Height in Carry Position (in.): 41.5
Lift Capacity (@ Pivot Pin) (lbs.): 1,005
Breakout Force(@ Pivot pin), lbs.: 2,083
Approx. Weight (Loader w/o Bucket) (lbs.): 320
FRONT END LOADER - LL1102
Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.) 72.0
Clearance with Attachment Dump (in.): 51.9
Reach at Maximum Height (in.): 26.8
Maximum Dump Angle (deg.): 39
Maximum Rollback Angle (deg.): 35
Digging Depth (in.): 4.8
Overall Height in Carry Position (in.): 40.0
Lift Capacity (@ Pivot Pin) (lbs.): 871
Breakout Force(@ Pivot pin), lbs.: 1,943
Approx. Weight (Loader w/o Bucket) (lbs.): 364
FRONT END LOADER - LL1700
Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.) 74.0
Clearance with Attachment Dump (in.): 55
Reach at Maximum Height (in.): 26.8
Maximum Dump Angle (deg.): 39
Maximum Rollback Angle (deg.): 35
Digging Depth (in.): 4.8
Overall Height in Carry Position (in.): 40.0
Lift Capacity (@ Pivot Pin) (lbs.): 980
Breakout Force(@ Pivot pin), lbs.: 1470
Approx. Weight (Loader w/o Bucket) (lbs.): 364
