4WD (FRONT WHEEL MECHANICAL ASSIST)
Go from 2WD to a 4WD with a simple move of a lever.
4WD (FRONT WHEEL MECHANICAL ASSIST)
Go from 2WD to a 4WD with a simple move of a lever.
INDEPENDENT PTO
Easiest PTO to operate that can be turned on or off with a switch.
DUAL PEDAL, 2 RANGE HST
Easier and more comfortable than rocker pedals.
STANDARD 16X16 SYNCHRO SHUTTLE
Makes changing direction easier than competitive non-shuttle gear models. 16 forward / 16 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
SIDE MOUNTED MAIN GEAR LEVER
Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
STANDARD 2 SETS OF REMOTE VALVES WITH DETENT
Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
EXTENDABLE LOWER LINKS
Allows easier attachment of a wide variety of Category 1 ( Category 2 for MT352 and MT357) implements with a 2,755 lbs lift capacity.
STANDARD TILT & POWER STEERING
Makes turning easier, improves control and reduces fatigue
FENDER MOUNTED JOYSTICK FOR FRONT END LOADER
Easily accessible for maximum comfort and convenience.
STANDARD FOLDABLE ROPS
Allows storage in low clearance buildings or sheds.
YOUR CHOICE OF TIRES AT NO ADDITIONAL COST*
Choose Ag, Industrial or Turf tires at no additional cost. * Subject to dealer inventory.
3-POINT HITCH
Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
STANDARD HYDRAULIC POSITION AND DRAFT CONTROL
Easily accessible for maximum comfort and convenience.
STANDARD REAR WORK LIGHT
Adjustable light to improve visibility where you need it.
STANDARD DRAW BAR
Increases the usefulness of the tractor without the additional optional cost.
7 PIN CONNECTOR
Provides electrical Power for implements when needed.
LARGE FUEL TANK
Provides long operation times between fill-ups.
FLAT PLATFORM AND RUBBER MAT
Roomy, spacious and comfortable.
LS CRDI TIER 4 ENGINE
Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather. Includes engine speed cruise control.
EASY OPEN ONE-PIECE STEEL HOODProvides accessibility for easy maintenance.
MODERN ERGONOMIC DESIGN
This compact is ergonomically designed .
DELUXE ADJUSTABLE SEAT WITH ARM RESTS AND RETRACTABLE SEAT BELT
Keeps you in a comfortable and safe position for maximum control.
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 42
PTO (HP): 35.7
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: Synchro Shuttle
No. of Speed: F16xR16
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 4.1
Steering: Hydrostatic
Total Flow (GPM) : 12.3
Category (3pt Hitch): CAT 1
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (1 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,380 (Cabin), 3,869 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 47
PTO (HP): 39.9
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: Synchro Shuttle
No. of Speed: F16xR16
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 4.1
Steering: Hydrostatic
Total Flow (GPM) : 12.3
Category (3pt Hitch): CAT 1
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (1 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,380 (Cabin), 3,869 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 52
PTO (HP): 44.2
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: Synchro Shuttle / Power Clutch
No. of Speed: F16xR16
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 4.1
Steering: Hydrostatic
Total Flow (GPM) : 12.3
Category (3pt Hitch): CAT 2
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 3 Pair (2 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,380 (Cabin), 3,869 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 57
PTO (HP): 48.4
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: Synchro Shuttle / Power Clutch
No. of Speed: F16xR16
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 4.1
Steering: Hydrostatic
Total Flow (GPM) : 12.3
Category (3pt Hitch): CAT 1
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (1 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,380 (Cabin), 3,869 (ROPS).

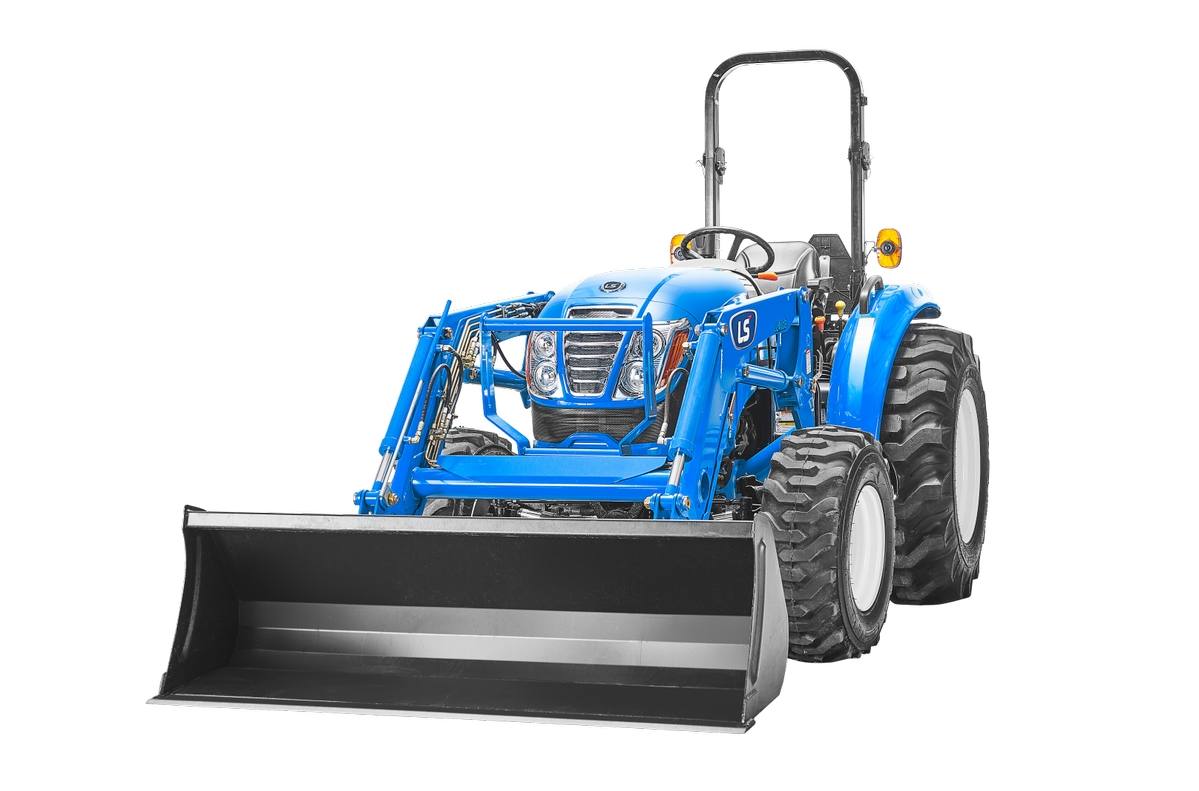

LL4106 – FRONT END LOADER
Bucker Size (in): 72
Maximum Lift height (in): 94.4
Clearance with Attachment Dump (in): 64.4
Reach at Maximum Height (in): 16.7
Maximum Dump Angle (deg.) 52
Maximum Rollback Angle (deg.): 41
Digging Depth (in): 4.3
Overall Height in Carry Position (in): 51.4
Lift Capacity(@ Pivot pin) (lbs.) 2,680
Breakout Force(@ Pivot pin) (lbs.): 4,063
Approx. Weight(Loader w/o Bucket), lbs.: 780
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 42
PTO (HP): 33.6
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: HST
No. of Speed: 3 Ranges (HST)
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 5.5 (Cabin), 6.8 (ROPS)
Steering: Hydrostatic
Total Flow (GPM) : 15 (Cabin), 13.7 (ROPS)
Category (3pt Hitch): CAT 1
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (1 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,446 (Cabin), 3,935 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 47
PTO (HP): 37.6
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: HST
No. of Speed: 3 Ranges (HST)
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 5.5 (Cabin), 6.8 (ROPS)
Steering: Hydrostatic
Total Flow (GPM) : 15 (Cabin), 13.7 (ROPS)
Category (3pt Hitch): CAT 1
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (1 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,446 (Cabin), 3,935 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 52
PTO (HP): 41.6
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: HST
No. of Speed: 3 Ranges (HST)
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 5.5 (Cabin), 6.8 (ROPS)
Steering: Hydrostatic
Total Flow (GPM) : 15 (Cabin), 13.7 (ROPS)
Category (3pt Hitch): CAT 2
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (2 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,446 (Cabin), 3,935 (ROPS)
ENGINE
Type: 3 Cylinder, Liquid-Cooled, Diesel TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 57
PTO (HP): 45.6
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal.): 12.4 (Cabin)/ 10.6 (ROPS)
Alternator V-A: 12-70
DRIVE TRAIN
Transmission: S-HST
No. of Speed: 3 Ranges (HST)
Brakes: Wet, Multi disc
PTO
Type: Independent
Rear (RPM): 540
Mid PTO (Option): 2000
HYDRAULIC SYSTEM
Control System: Position & Draft
Implement Pump (GPM) : 8.2
Steering Pump (GPM): 5.5 (Cabin), 6.8 (ROPS)
Steering: Hydrostatic
Total Flow (GPM) : 15 (Cabin), 13.7 (ROPS)
Category (3pt Hitch): CAT 2
Hitch Lift Capacity Hitch Ends (lbs.): 2,755
Remote Valves: 2 Pair (2 Detent, 1 STD)
DIMENSION
Overall Length (Frame To Link, in.): 133
Overall Width With Tires (in.): 62.5
Wheelbase (in.): 73.2
Height To Top ROPS (in.): 90 (Cabin), 95 (ROPS)
TIRE SIZE
Front / Rear Ag: 9.5 - 16 / 13.6 - 24
Front / Rear Industrial: 12 - 16.5 / 17.5L - 24
Front / Rear Turf: 28 x 8.5 - 15 / 41 x 14 - 20
WEIGHT
Total Weight w/o Ballast (lbs.): 4,446 (Cabin), 3,935 (ROPS)
526 Commerce Ct.
Bonduel Wisconsin 54107
Phone: 715-853-6792
1100 E Wisconsin Ave
Appleton, Wisconsin 54911
Phone: 920-358-7337
N21926 US-141 8
Niagara, Wisconsin 54151
Phone: 715-251-1459
1465 E Frontage Rd
Little Suamico, Wisconsin 54141
Phone: 715-851-6765
2616 Washington St
Manitowoc, Wisconsin 54220
Phone: 715-449-6737
